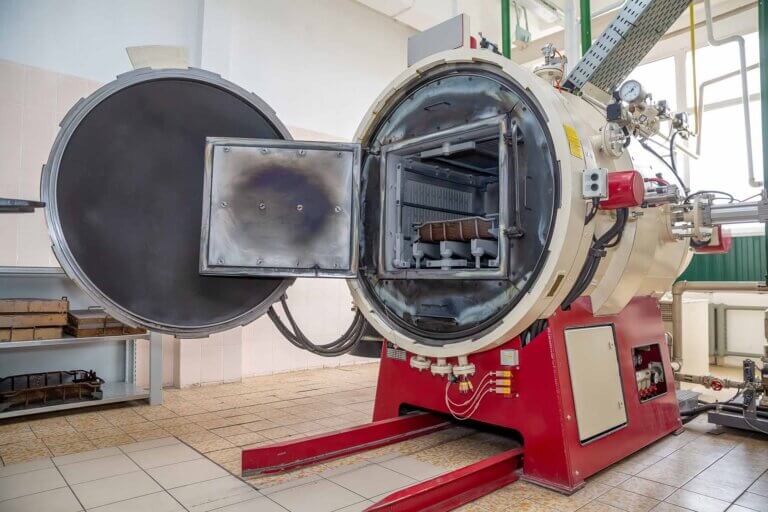

heat treating services tfg usa 1
January 22, 2024

Heat Treating Metal Parts: A Comprehensive Guide

Heat treating metal is a crucial process in the world of metallurgy, engineering, and manufacturing. It involves controlled heating and cooling of metals to enhance their physical and mechanical properties. Whether you’re dealing with steel, aluminum, or other alloys, heat treating plays a pivotal role in achieving desired material characteristics.

In this article, we will delve into the intricacies of heat treating, exploring its principles, methods, and applications.

What Is Heat Treating?

Heat treating is a metallurgical process that alters the physical and sometimes chemical properties of a material by subjecting it to controlled heating and cooling. The primary objectives of heat treating are to improve hardness, toughness, strength, and other mechanical properties of metals.

The Heat Treating Process

Key principles of the heat treatment process:

Heating Stage

The first step in the heat treating process involves raising the temperature of the material to a specific level, known as the austenitizing temperature. This allows the metal’s crystal structure to change, preparing it for subsequent transformations.

Heating metal slowly allows for uniform temperature distribution throughout the material, preventing thermal gradients that could lead to internal stresses and distortions. This gradual approach is particularly important in annealing processes, where slow heating helps in achieving a refined and consistent grain structure. It also provides sufficient time for the diffusion of alloying elements, ensuring their homogeneous distribution within the material.

Slow temperature heat minimizes the risk of thermal shock, which can occur if the temperature rises too rapidly, potentially causing cracks or other defects. Overall, the careful control of the heating rate contributes to the success of heat treatment by promoting uniformity, minimizing distortion, and optimizing the effectiveness of subsequent processing steps.

Soaking Stage

Once the metal reaches the desired temperature, it is held at that temperature for a certain duration. This soaking period ensures uniformity in temperature throughout the material, allowing for optimal diffusion of alloying elements.

Cooling Stage

The cooling process is critical and can be done rapidly or gradually, depending on the desired outcome. Different cooling rates result in varying material properties. Common cooling methods include quenching, annealing, and tempering.

Gradual Cooling

Gradual cooling, as opposed to rapid cooling (quenching), is used in certain heat treatment processes to achieve specific material properties. The choice of gradual cooling is based on the desired outcome for the metal being treated.

Here are some reasons why gradual cooling might be chosen in the heat treatment process:

  1. Stress Reduction:
    • Gradual cooling helps in reducing internal stresses within the material. Rapid cooling, especially in the case of quenching, can introduce significant residual stresses that may lead to distortion or cracking. Gradual cooling allows the material to cool more uniformly, minimizing stress-related issues.
  2. Improved Toughness:
    • While rapid cooling (quenching) can increase hardness, it may also lead to increased brittleness. Gradual cooling, particularly in tempering processes, allows for a controlled reduction in hardness while improving toughness. This is essential for applications where a balance between hardness and toughness is crucial.
  3. Annealing Processes:
    • Annealing, a heat treatment process involving gradual cooling, is used to soften metals, relieve internal stresses, and improve ductility. Slower cooling during annealing promotes the formation of a refined and uniform grain structure. Annealing is a common heat treating process for cold headed parts.
  4. Normalization:
    • Similar to annealing, normalization involves gradual cooling after heating to refine the grain structure and improve mechanical properties. It is often chosen when a balance between strength and ductility is required.
  5. Grain Refinement:
    • Slower cooling allows for controlled grain growth or refinement, depending on the specific heat treatment process. This is important for optimizing the mechanical properties of the material.
  6. Minimization of Distortion:
    • Certain components, especially those with complex shapes, are prone to distortion during rapid cooling. Gradual cooling minimizes the risk of distortion, ensuring that the final product meets dimensional and shape requirements.
  7. Precipitation Hardening (Aging):
    • Some alloys undergo precipitation hardening, which involves a controlled cooling process after a specific heat treatment. Gradual cooling during this stage allows for the formation of precipitates, enhancing the strength and hardness of the material.
  8. Controlled Transformation:
    • In certain heat treatment processes, such as bainite or spheroidizing treatments, gradual cooling is employed to control the transformation of the microstructure. This helps achieve the desired combination of mechanical properties.
  9. Specific Material Characteristics:
    • Depending on the material and its intended application, gradual cooling may be chosen to achieve specific characteristics such as improved machinability, better fatigue resistance, or enhanced corrosion resistance.
  10. Selective Treatment:
    • In cases where localized changes in properties are needed, selective or differential cooling may be employed. This involves gradual cooling in specific areas while other areas may experience rapid cooling.

In summary, the choice of the appropriate temperature in the heat treatment process is driven by the need to reduce stresses, enhance toughness, and achieve specific characteristics tailored to the requirements of the intended application. The selection of the appropriate cooling rate is a crucial aspect of optimizing the overall performance of the treated material.

Rapid Cooling

Rapid cooling, also known as quenching, is chosen in the heat treatment process for several specific reasons, each contributing to the desired material properties for certain applications like metal castings. Here are some key reasons why rapid cooling may be chosen:

  1. Hardness Enhancement:
    • The primary reason for choosing rapid cooling is to enhance the hardness of the material. Metal cooled rapidly, especially in the quenching process, promotes the formation of martensite, a hard and brittle microstructure. This increased hardness is crucial for applications where wear resistance and durability are essential, such as cutting tools and gears.
  2. High Surface Hardness:
    • Rapid cooling is particularly effective in achieving high surface hardness in components. This is beneficial in applications where wear occurs primarily at the surface, such as in case-hardened components.
  3. Quenching Medium Selection:
    • The choice of quenching medium (water, oil, air) allows for tailoring the cooling rate. Water quenching provides a faster cooling rate compared to oil, and air quenching is even slower. The selection of the quenching medium is based on the desired hardness and the type of steel being treated.
  4. Controlled Microstructure:
    • Rapid cooling helps in achieving a controlled and uniform microstructure. The quick transition from austenite to martensite ensures that the resulting microstructure is fine-grained and homogeneous, contributing to improved mechanical properties.
  5. Wear Resistance:
    • Components subjected to rapid cooling during heat treatment exhibit increased wear resistance. This is particularly important in applications where the material is exposed to abrasive or erosive conditions.
  6. Dimensional Stability:
    • Rapid cooling minimizes the time during which the material is in a critical temperature range, reducing the potential for distortion or dimensional changes. This is essential for maintaining the precision and accuracy of components.
  7. Strength Improvement:
    • The increased hardness resulting from rapid cooling contributes to improved overall strength. This is crucial for applications where high tensile strength and load-bearing capacity are required.
  8. Selective Treatment:
    • Rapid cooling can be selectively applied to specific areas of a component, allowing for localized hardening. Techniques like induction hardening or flame hardening enable precise control over the regions that require increased hardness.
  9. Time Efficiency:
    • Rapid cooling is a relatively quick process compared to slow cooling methods. This can be advantageous in manufacturing processes where efficiency and production speed are important factors.
  10. Tailoring Material Properties:
    • The ability to control the cooling rate during heat treatment allows for the customization of material’s final properties, enabling manufacturers to tailor the steel’s characteristics to meet specific application requirements.

While the rapidly cooled process provides these advantages, it’s essential to carefully balance the desired hardness with potential drawbacks such as increased hydrogen embrittlement. Subsequent tempering processes are often employed to address these concerns and achieve a balance between hardness and toughness in the final product.

Types of Heat Treating Methods

alignment pins hero tfg usa

Various types of heat treatments involve specific heating processes to achieve desired material properties. The key types of heat used in the heat treatment process include:

Annealing Process

  • Process: Annealing involves heating the material to a specific temperature and holding it at that temperature for a prolonged period. The material is then slowly cooled to room temperature.
  • Purpose: Annealing relieves internal stresses, softens the material, and promotes uniform grain structure. It is used to improve machinability and reduce hardness especially in metal forged products.

Normalizing

  • Process: Similar to annealing, normalizing involves heating the material to a specific temperature, but instead of slow cooling, the material is allowed to cool in still air.
  • Purpose: Normalizing improves the uniformity of grain structure, enhances mechanical properties, and refines the microstructure. It is often used to achieve a balance between strength and ductility. Normalizing is typically done after manufacturing processes such as metal stamping.

Quenching

  • Process: Quenching is a rapid cooling process, usually involving immersion of the heated material in a quenching medium such as water, oil, or air.
  • Purpose: Quenching results in increased hardness by promoting the formation of martensite. It is commonly used to achieve high hardness in steels and other alloys.

Tempering

  • Process: Tempering follows quenching and involves reheating the quenched material to a lower temperature. The material is then cooled at a controlled rate.
  • Purpose: Tempering reduces the brittleness introduced by quenching, imparts toughness, and refines the microstructure. It is used to achieve a balance between hardness and toughness.

Case Hardening

  • Process: Case hardening involves heating the surface of the material and then introducing carbon or nitrogen to create a hard outer layer.
  • Purpose: Case hardening improves wear resistance, hardness, and fatigue strength of the surface while maintaining a tougher core.

Induction Hardening

  • Process: Induction hardening uses electromagnetic induction to heat specific areas of the material quickly, followed by quenching.
  • Purpose: Induction hardening is a localized heat treatment method used to selectively harden specific regions of a component, providing wear resistance in critical areas.

Flame Hardening

  • Process: Flame hardening involves heating the material surface using an oxy-acetylene flame and then quenching.
  • Purpose: Similar to induction hardening, flame hardening is used to selectively harden specific areas of a component, enhancing wear resistance.

Precipitation Hardening (Aging)

  • Process: Precipitation hardening involves heating the material to a specific temperature, followed by a controlled cooling and aging process.
  • Purpose: Precipitation hardening enhances the strength and hardness of certain alloys by promoting the formation of precipitates within the microstructure.

Each type of heat treatment is tailored to achieve specific material properties based on the intended application of the metal. The choice of heat treatment process, temperature, and duration is critical in determining the final characteristics of the material.

Applications of Heat Treating

heat treating tfg usa

  • Agriculture Industry: Heat-treated components, such as plow blades, tillage tools, and gears improve performance and durability in the agriculture industry.
  • Heavy Equipment: Heat treating is crucial for producing lightweight yet strong components such as excavating equipment, hooks, and wheel studs.
  • Tool Manufacturing: High-speed steels and tool steels undergo heat treatment to achieve the necessary hardness for cutting and machining.
  • Construction Equipment: Heat-treated augers, boom components, custom fasteners, and trencher products are commonly used in construction equipment due to their corrosion resistance and strength.

Common Metals Associated with Heat Treating

Heat treating is a common practice for a variety of metals, each with its own specific characteristics and purposes for undergoing the process. Here are some of the metals that are typically heat treated:

  • Steel
    • Carbon Steel: Heat treating is commonly used to achieve desired hardness, strength, and toughness in carbon steels. Carbon steels require rapid cooling which promotes the formation of martensite, a hard and brittle microstructure.
    • High Alloy Steels: Various alloying elements are added to steels to enhance specific properties, and heat treating is applied to optimize these alloys.
  • Aluminum Heat Treating
    • Aluminum alloys undergo heat treatment for precipitation hardening. This process enhances the strength and hardness of aluminum, making it suitable for aerospace and structural applications.
  • Stainless Steel
    • Stainless steel parts that have been cold formed are often heat treated to achieve specific mechanical properties, corrosion resistance, and hardness.
  • Copper
    • Certain copper alloys can undergo heat treatment for improved strength and hardness.
  • Brass
    • Heat treating is used to modify the properties of brass, such as hardness and machinability.
  • Titanium
    • Titanium alloys may undergo heat treatment to achieve the desired balance of strength and ductility.
  • Nickel Alloys
    • Alloys containing nickel, such as Inconel and Monel, can be heat treated to enhance their high-temperature strength and corrosion resistance.
  • Tool Steels
    • Various tool steels, including high-speed steels, are heat treated to achieve the hardness required for cutting tools and other applications.
  • Cobalt Alloys
    • Alloys containing cobalt, such as Stellite, may undergo heat treatment for wear resistance and improved mechanical properties.
  • Magnesium Alloys
    • Some magnesium alloys are heat treated to improve their strength and resistance to corrosion.

It’s important to note that the specific heat treatment processes and parameters can vary based on the type of metal and its intended application. The choice of heat treatment method, such as annealing, quenching, tempering, or others, depends on the desired material properties and the characteristics of the metal being treated.

The goal is to achieve the optimal combination of hardness, toughness, and other mechanical properties for the intended application.

The Advantages of The Heat Treatment Process

Cold headed wheel stud manufacturing 2

Heat treatments offer numerous advantages, allowing manufacturers to tailor the desired properties to meet specific requirements for different applications. Some key advantages of heat treating metal include:

  • Increased Hardness:
    • One of the primary benefits of heat treating is the ability to increase the hardness of metals. Processes like quenching and martensitic transformations lead to the formation of hard microstructures, enhancing wear resistance.
  • Improved Strength:
    • Heat treating can significantly improve the strength of metals by optimizing their crystalline structures. This is essential for applications where high tensile strength and load-bearing capacity are required.
  • Enhanced Toughness:
    • Certain heat treatment processes, such as tempering, help balance hardness with toughness. This is crucial for applications where impact resistance and durability are important.
  • Controlled Grain Structure:
    • Heat treating allows for the control and refinement of the grain structure within the metal. This contributes to improved mechanical properties and overall performance.
  • Optimized Ductility:
    • Annealing and certain tempering processes can enhance the ductility of metals, making them more formable and easier to work with during manufacturing processes.
  • Reduced Internal Stresses:
    • Other manufacturing processes like CNC machining can introduce internal stresses into the component. Annealing processes relieve internal stresses within the metal, preventing distortion, cracking, and other issues that may arise during manufacturing or service.
  • Improved Machinability:
    • Annealing and normalizing processes can improve the machinability of metals, making them easier to cut, shape, and finish.
  • Resistance to Wear and Abrasion:
    • Heat-treated metals, especially those subjected to surface hardening techniques like case hardening, exhibit increased resistance to wear, abrasion, and friction.
  • Enhanced Corrosion Resistance:
    • Certain heat treatment processes, including the use of corrosion-resistant alloys, can improve a metal’s resistance to corrosion, making it suitable for harsh environments.
  • Tailored Electrical and Magnetic Properties:
    • Heat treating can be used to modify the electrical and magnetic properties of metals, expanding their range of applications in electronics and magnetic devices.
  • Selective Treatment:
    • Heat treatment allows for selective treatment of specific areas of a component, providing localized improvements in properties. Techniques like induction hardening and flame hardening enable precise control.
  • Improved Fatigue Resistance:
    • Controlled heat treatment can enhance the fatigue resistance of metals, making them suitable for cyclic loading conditions without premature failure.
  • Precision and Consistency:
    • Modern heat treatment processes offer precise control over temperature, time, and cooling rates, ensuring consistency and repeatability in achieving desired material properties.
  • Customization for Specific Applications:
    • Heat treating provides a versatile tool for tailoring material properties, allowing manufacturers to customize metals for specific applications in industries such as automotive, aerospace, tooling, and more.

In summary, the advantages of heat treating metal are diverse, contributing to improved mechanical, physical, and chemical properties that meet the specific needs of various industries and applications.

Conclusion

Heat treating is a versatile and indispensable process in metallurgy, offering engineers and manufacturers the ability to tailor material properties to meet specific application requirements. Understanding the principles and methods of heat treating allows for the production of materials with enhanced performance, durability, and reliability across various industries.
