Casting Defects and How to Prevent Them: A Comprehensive Engineering Guide

Imagine you’re crafting the perfect sculpture, but once it’s unveiled, you find unexpected flaws marring its surface. That’s often what happens in the world of metal casting – the ancient practice of pouring molten metal into a mold. More than just cosmetic issues, casting defects are structural failures that could significantly delay production schedules and inflate costs.

But identifying the root cause of a casting defect is often detective work as you would need to have intimate knowledge of the metallurgical physics at play to distinguish between otherwise similar symptoms, like gas porosity and shrinkage cavities. If you’re lucky, the solution might be as simple as adjusting the temperatures, or it might require a complete redesign of the gating system.

Fret not! In this guide, we break down the most common casting defects, why they happen, and exactly how to fix them so you can keep your production lines moving and your clients happy.

Key Takeaways

• Learn how to distinguish between gas porosity (smooth, round) and shrinkage (jagged, irregular) to apply the right fix.
• Most defects stem from improper pouring temperatures, moisture in the mold, or turbulent flow in the gating system.
• Many defects are preventable before the metal is poured by optimizing wall thickness and draft angles during the design phase.
• Working with an experienced manufacturing partner like The Federal Group USA ensures proper design feedback is integrated early on to reduce scrap rates.


The “Big 5” Casting Defects to Look Out For

Before you can fix a defect, you have to name it first. Reference the table below to quickly identify and remedy some of the most commonly encountered casting issues.

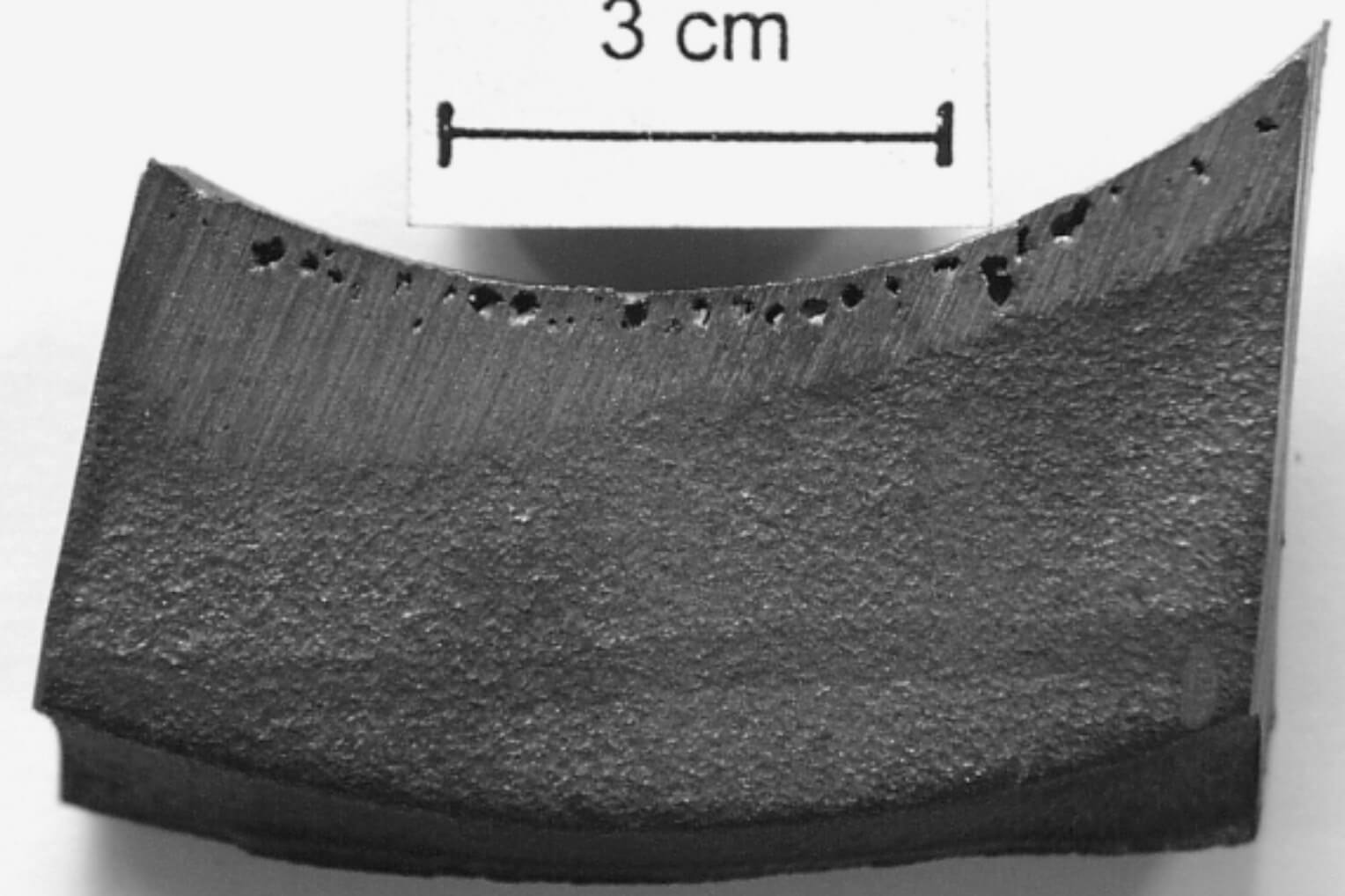

Gas Porosity Defects

Very common in the investment casting process, gas porosity defects are perhaps the most frustrating ones to have because they often hide beneath the surface until machining reveals them. These voids weaken the structural integrity of the component, making it prone to failure under stress.

Porosity happens when the molten metal holds more gas (usually hydrogen) than the solid metal can retain. As the metal cools and solidifies, that gas is expelled. If it cannot escape through the mold vents, it forms bubbles.

But gas isn’t the only culprit. Air entrapped during a turbulent pour can also create similar voids.

Identifying Gas Porosity vs. Shrinkage

Engineers often confuse gas porosity with shrinkage cavities, but the remedy for one will not necessarily fix the other. Here is how to tell them apart under magnification.

How to Deal With Porosity Defects

Eliminating porosity requires careful management of melting practices and mold design. Techniques like vacuum-assisted casting or modifying the chemical composition of the molten material can help reduce gas porosity.

Here is how to fix this:

• Dry the mold and ladles: Moisture is the enemy. Even a small amount of dampness in the sand mold or ladle lining turns into steam instantly upon contact with molten metal. Ensure all tools and molds are preheated and bone-dry.
• Degas the melt: For aluminum and copper alloys, use degassing agents or inert gas purging (like nitrogen or argon) to remove dissolved hydrogen before pouring.
• Improve venting: The mold must be permeable. Add vents or increase sand permeability to allow gases to escape ahead of the metal front.
• Reduce turbulence: Design the gating system to promote smooth, laminar flow. Turbulence traps air in the stream, which becomes entrained in the casting.

Shrinkage Defects

This type of casting defect is common in the sand casting process. Shrinkage looks like jagged internal or surface cavities and cracks that result from metal cooling too fast in specific sections of your mold.

This is often tied to another common casting defect – hot spots, which are localized areas of the casting that cool more slowly than the surrounding metal. This creates isolated pockets of liquid that eventually lead to internal voids.

However, although it may seem logical, the solution here is not as simple as just pouring more metal – you would also need to take into consideration factors like proper riser and gating calibration.

How to Deal With Shrinkage Defects

The secret to prevention here lies in making sure the entire part cools down evenly. You want the casting to solidify directionally, starting at the furthest point and moving toward the feed source.

Here is how to fix this:

• Use risers effectively: A riser is a reservoir built into the mold that stays liquid longer than the casting itself. It feeds molten metal into the shrinking sections. If your riser freezes before the casting, it fails.
• Chill placement: Use external chills (metal inserts) in the mold to speed up cooling in thick sections. This forces solidification to happen evenly, preventing isolated pockets of liquid metal from getting trapped.
• Gating system balance: The gates control how fast metal enters the mold. If the metal enters too slowly, it may freeze prematurely. But if it enters too fast, it causes turbulence. Calculating the correct flow rate is essential for keeping the feed metal viable.

Flow and Pouring Defects

When molten metal flows into a mold, it races against time and temperature. If the metal solidifies before it completely fills the cavity, or if two streams meet but are too cold to fuse together, you get flow and pouring defects. Below, we’ll review two of the most common types of defects: cold shuts and misruns.

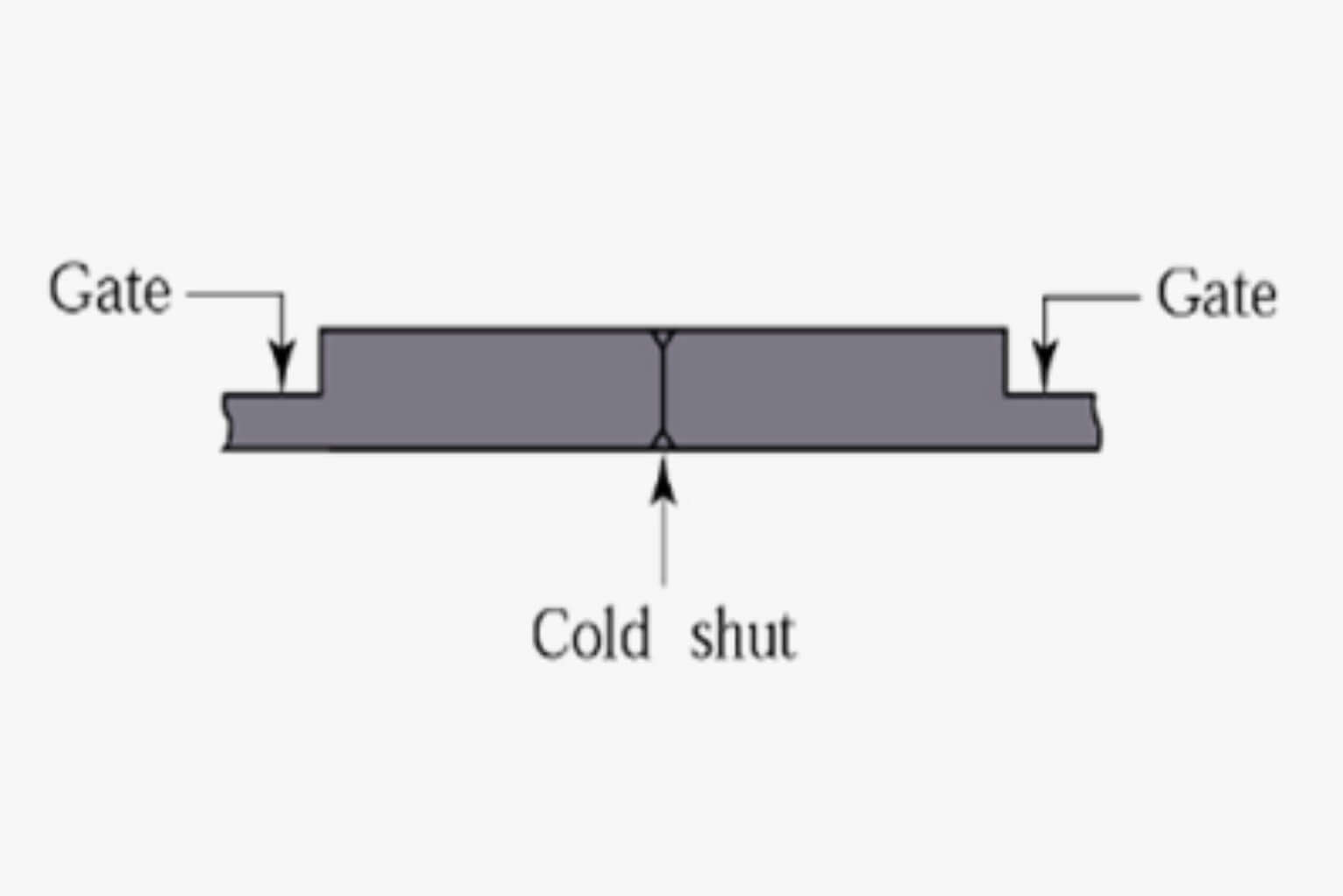

A Look at Cold Shuts

Cold shuts are common in the die casting process. This happens when two separate streams of molten metal meet but are too cool to fuse into a single solid piece. Visually, this looks like a crack or a seam running through the part, creating a structural weak point where the metal fronts merely “touched” rather than bonded.

A Look at Misruns

Also known as incomplete fillings, misruns are more obvious to spot as the mold simply doesn’t fill. This happens when the metal freezes before reaching the far corners or thin sections of the mold. What you end up with then is an incomplete casting, often missing thin sections or corners of its intended geometry.

How to Deal With Flow and Pouring Defects

Dealing with this pesky type of defect will require careful temperature calibrations and checking the wall thickness of your design, alongside other things.

Here is how to fix this:

• Increase pouring temperature: But do this carefully. Too much heat leads to gas porosity or mold erosion. You need to find the specific “goldilocks” zone for your alloy.
• Speed up the pour: A faster pour rate keeps the metal moving and prevents premature cooling.
• Modify gating ratios: If the runner system is too long or restrictive, the metal loses heat before it can reach the cavity. To tackle this, shorten the path or increase the runner cross-section.
• Check wall thickness: Thin sections cool instantly. Ensure your design allows for adequate flow through narrow areas.

Metallurgical Inclusions and Impurities

Inclusions are foreign particles trapped inside the metal matrix. They act as stress concentrators, reducing the fatigue strength of the part. If you machine a casting and hit a hard spot that breaks your tool, you’ve likely hit an inclusion.

These usually come in two forms: slag/dross (oxides from the melt) or sand (erosion from the mold).

How to Deal With Metallurgical Inclusions and Impurities

From using ceramic foam filters to strengthening the mold, mending these defects requires a multi-pronged approach.

Here is how to fix this:

• Turn to filters: Use ceramic foam filters in the gating system. These trap non-metallic inclusions before they enter the mold cavity.
• Clean the melt: Thorough fluxing and skimming of the ladle before pouring removes dross and slag.
• Strengthen the mold: If you see sand grains in the casting, your mold might be eroding. Increase the binder content in the sand or apply a better mold wash to prevent the molten metal from washing away the mold wall.


Mold and Shape Defects (Flash, Warpage, Shift)

Sometimes the metal is perfect, but the mold itself fails to hold the shape. These mechanical defects affect dimensional accuracy and often require expensive secondary machining to fix.

How to Deal With Mold and Shape Defects

From replacing worn pins to performing redesigns, the solutions here tend to vary depending on which defect type you’re facing.

Here is how to fix this:

Other Types of Casting Defects

While primary issues like porosity and shrinkage are common, several other sneaky defects could quickly turn a perfect design into a production nightmare. Understanding these specific complications – from mold integrity to metallurgical stresses – is the first step toward achieving a flawless pour.

Mold Material Defects

These typically appear as surface irregularities, voids, or cracks in the final casting. Mold-related defects typically arise from improper mold preparation, inadequate ventilation that leads to gas entrapment, or the presence of impurities within the mold material itself. Within this category, we also find rat tails, veins, and buckles, which are physical irregularities on the casting surface caused by the thermal expansion of the mold material.

To prevent these, make sure you have a proper mold design, utilize high-quality materials, and maintain strict control over temperatures and pouring speed. Regular maintenance and periodic inspections for signs of wear are also a good way to ensure defect-free results.

Fusion and Metal Bonding Defects

Fusion defects manifest as weak spots or incomplete castings where the metal has failed to bond. This happens when molten metal fails to fuse properly within the mold due to incorrect pouring temperatures or impurities in the metal. A closely related defect here is the cold shot, which appears as small globules of metal embedded in the casting that failed to fuse with the main body.

To tackle these head-on, ensure your metal is at the optimal temperature for pouring. If it is too cold, it will likely not fill correctly or bond with cold shots. Conversely, if it is too hot, it can trigger gas porosity. Keeping the molten metal clean is also another thing you can do to ensure proper bonding.

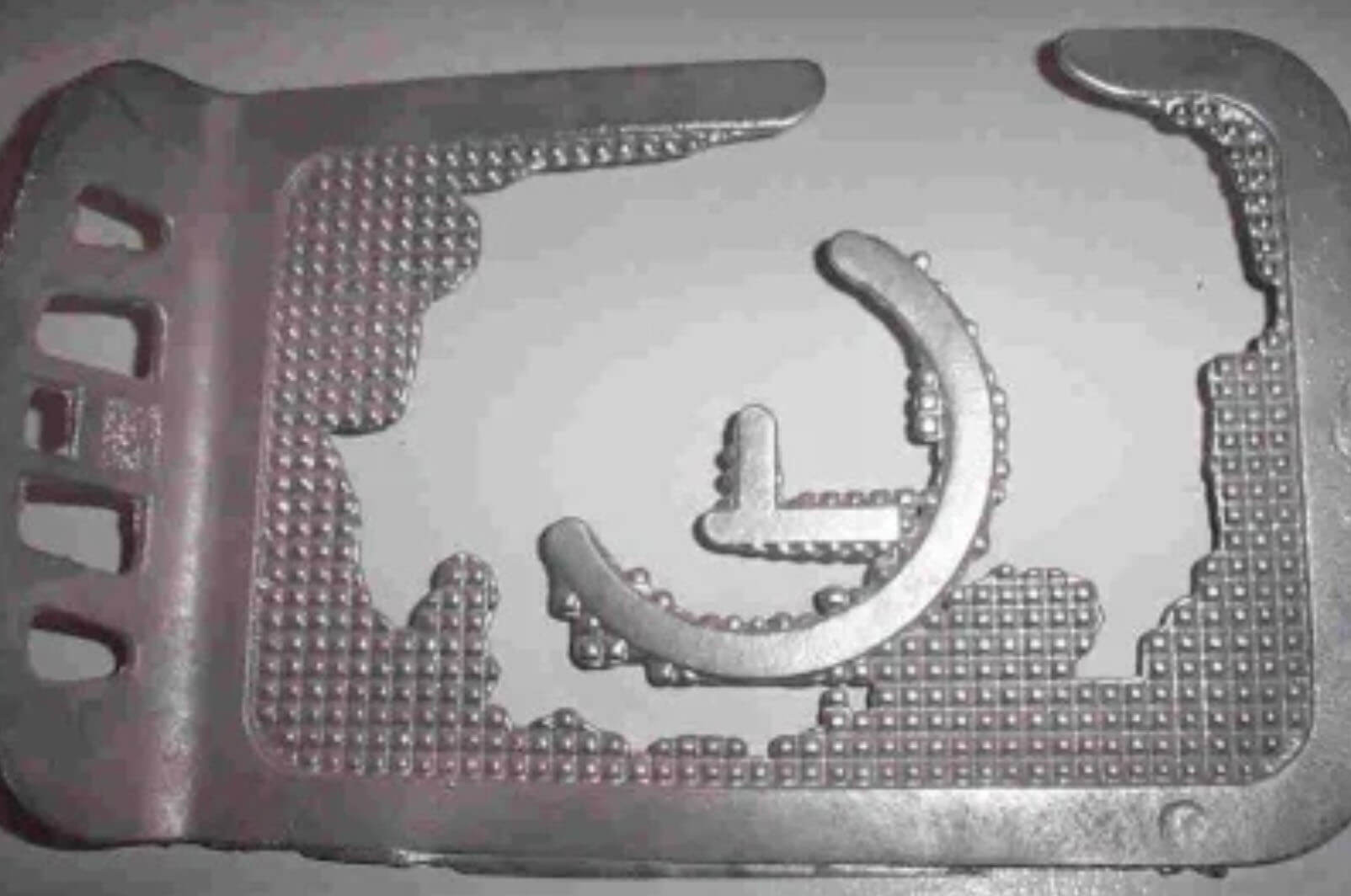

Run Out Defects

A run out looks like an incomplete part due to the molten metal escaping the mold before it could solidify. This happens when the liquid metal finds an exit through gaps or cracks in the mold itself. To avoid being in this messy situation, ensure that your molds are entirely intact and properly sealed. High-quality molding materials can also make a difference and help you prevent pesky leaks.

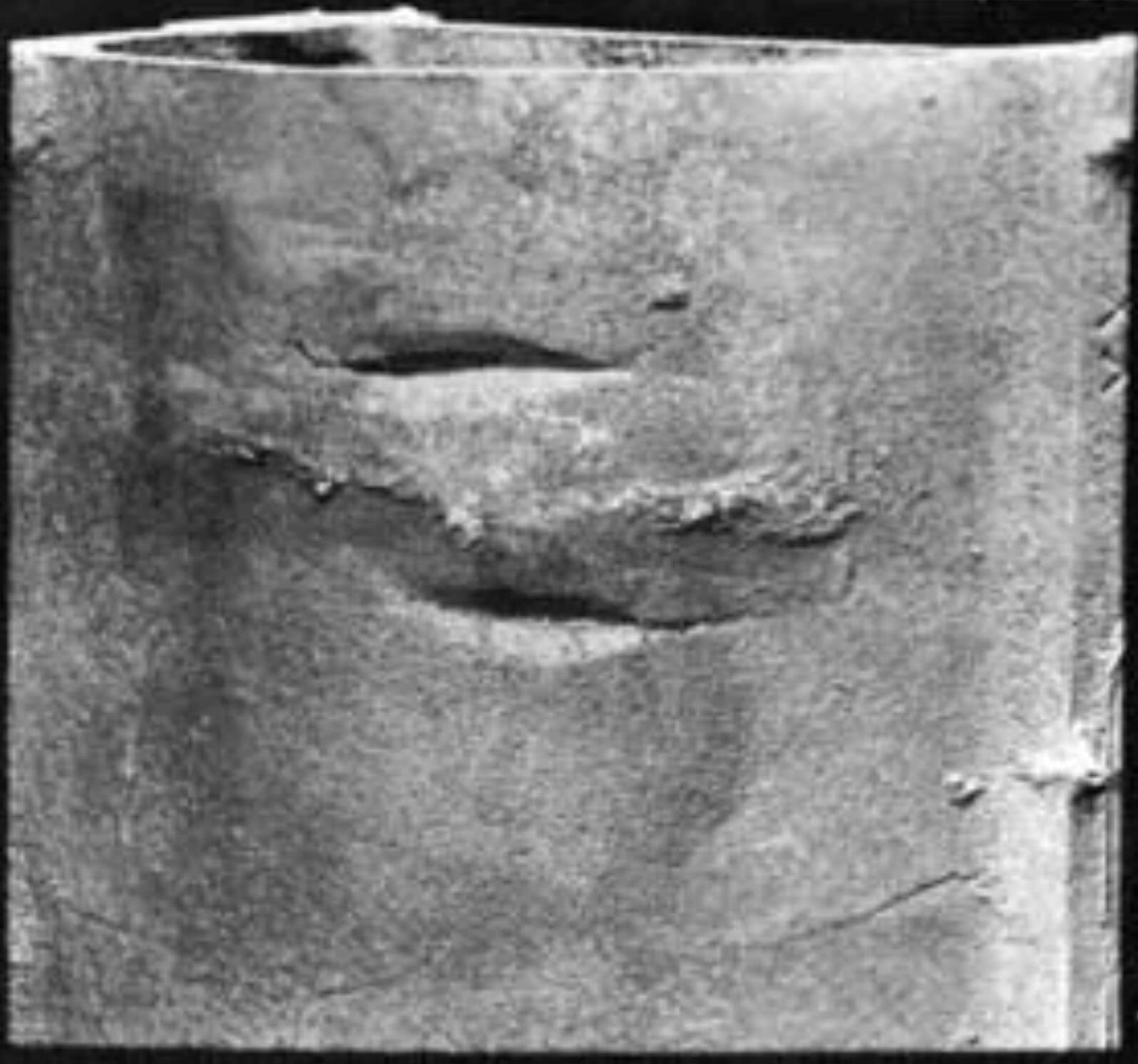

Swell Defects

Swells appear as unexpected bulges or enlarged dimensions where the final product is slightly larger than intended. This defect occurs when the mold cavity enlarges or expands during the pouring process, often due to pressure buildup or an insufficient clamping force. To keep swells at bay, tweak your molding parameters and clamping force to achieve a balance between pressure and support within the mold.

Hot Tears and Crack Defects

Hot tears and cracks are common metallurgical defects that look like fractures or parts bending out of shape. These contortions frequently happen from either cooling the material too quickly or distributing it inconsistently.

The key to keeping your parts straight is to ensure uniform temperature throughout the cooling process. To achieve this, you could adjust your mold design for even heat dissipation and monitor cooling rates closely to avoid thermal shocks that may lead to cracking.

Open Hole Defects

Open Holes are visible gas pockets on the metal surface caused by trapped air. To prevent these, use finer mold materials to create a tighter barrier, ensure proper compaction, and improve mold venting to allow gases to escape during the pour.

Conclusion

Casting is a complex process where metallurgy, physics, and mechanical engineering intersect to create something truly special. And while defects like porosity and shrinkage are common, by following smart design practices and having the right processes in place, they are unlikely to cause any serious trouble.

But to achieve this, you need more than just a foundry. To improve your chances of success, you also need a manufacturing partner who can take you through your metal casting journey by offering a delicate balance between technical expertise, manufacturing resources, and logistical support.

At TFG, we are known for marrying high quality materials with advanced manufacturing processes and a team of veteran technicians who treat each stage of your project as if it were their own. We also provide a detailed preliminary DFM analysis to identify and resolve any design issues from the onset, saving you time and money spent on scrapped batches and costly fixes.

Pick us as your ISO-certified manufacturing partner and we will provide you with high-quality castings that meet your print specifications every time. Contact TFG today for a free quote.

FAQs

What is the most common casting defect?

Gas porosity is widely considered the most common defect across all casting methods. It occurs easily because molten metal (especially aluminum) naturally absorbs hydrogen from moisture in the air or mold. Even a small amount of humidity can trigger significant porosity issues if the melt isn’t properly degassed.

How can casting defects be detected without destroying the part?

Engineers rely on Non-Destructive Testing (NDT) to see inside a casting. X-ray (radiography) is the standard for detecting internal voids like shrinkage and porosity. Ultrasonic testing is used for detecting cracks and discontinuities. For surface defects, Dye Penetrant Inspection (DPI) or Magnetic Particle Inspection (MPI) are effective, low-cost methods.

At TFG, we can perform a variety of casting defect detection tests to ensure your parts are up to spec.

Can casting defects be repaired?

Yes, but it depends on the severity and the application. Surface defects can often be ground down. Minor voids or cracks in non-critical areas can be repaired via welding or impregnation (sealing with a resin). However, for safety-critical components in aerospace or medical applications, repair is often prohibited, and the part must be scrapped to ensure 100% structural integrity.
