Industrial Fan
This 12″ safety-yellow industrial fan showcases the integrated manufacturing and assembly capabilities available to you through TFG USA.
Please note the wire forming and welding to create easy-clean powder-coated quick-release fan guards, the tube bending and piercing—all assembled with a permanently-lubricated 120-volt 50-watt 60 Hz .48 amp electric fan motor, power cord, adjusting knobs, and custom base with integrated rubber feet.
Materials and methods come together to create the quietest and most efficient air circulation unit for floor, tabletop, wall, or overhead mounting (with included workstation fan bracket).
The industrial fan assembly process
The industrial fan assembly process begins with the wire forming of the fan blade guard, as seen in the photo. The wire is formed into the fan guard shape and then welded together. This technique creates the fan’s quick-release guards.
Next, the tube bending and piercing take place. The tubes are bent to create the shape of the fan base and then pierced to accept the tilting/adjusting screws that allow for optimal airflow, operator comfort, and efficient productivity.
We then install the electric fan motor into the assembly. This permanently-lubricated motor can run smoothly for years to come.
Finally, we add the over-molded plastic adjusting knobs and rubber feet to the assembly. These knobs allow you to adjust the tilt of the fan head, and the rubber feet will keep it in its place.

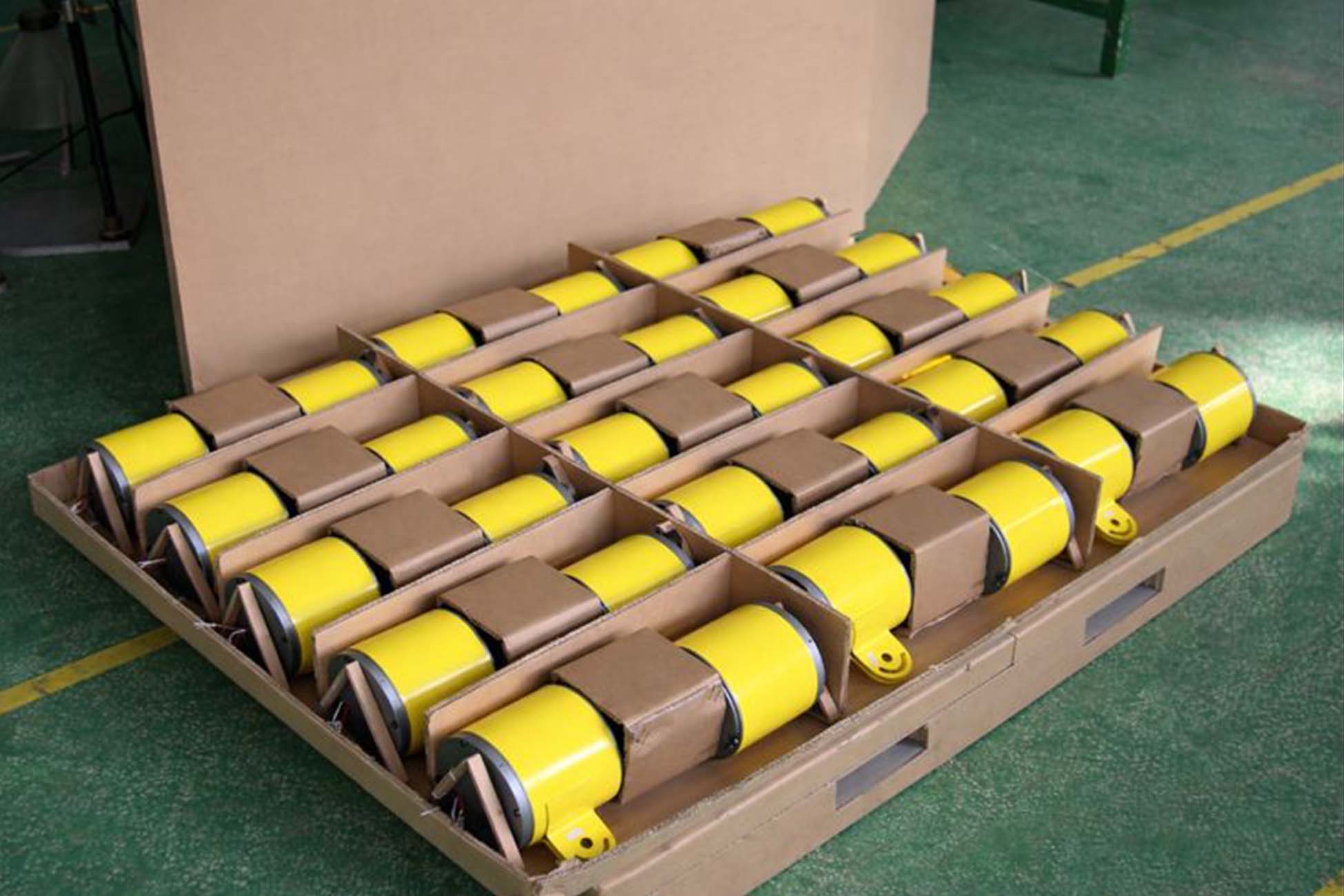

Pictured above: Motor for industrial fan assembly
Looking for industrial fan manufacturers?
With TFG USA, you can have your industrial / workstation fan products assembled and custom packaged with precision and care—perfect for your specific needs. We have also supported our customers in obtaining UL listings for industrial fans and power cords.
What size, color, power-cord length, quantity or features will serve you best?
Learn how to get just the configuration you need — ready to use at your plant.
Contact us today to learn more about TFG USA industrial fan assembly capabilities.
Materials
- Steel wire and tubing
- Various steel alloys or other materials, as appropriate, depending on fan size and operating environment.
Featured components
- Wire forming
- Fan guards
- Tube forming
- Stampings
- Electric motor
- Electric power cords
- Blade assembly
- Painting
- Custom powder coating
- Workstation fans
- Fan support mounting components
- Fan base
- Fan column
- Custom packaging
Manufacturing process
- Wire forming and welding
- Tube bending and piercing
- Assembly of the completed unit
Customizations
- Fan diameter, number of blades
- Motor power, speeds
- Head tilt
- Power cord length
- Powder coating color
- Mounting configuration
Industries served
- Industrial
- Manufacturing
- Shop floor
- Factories
- Plants
- Greenhouses
- Tobacco growers
- Cannabis greenhouses
- Swine and poultry housing
- Odor control
- Disaster restoration & remediation
- Cleanup providers
Main application
- Cooling, industrial & residential
- Personal workstation cooling
Other potential applications
- Air circulation improvement
