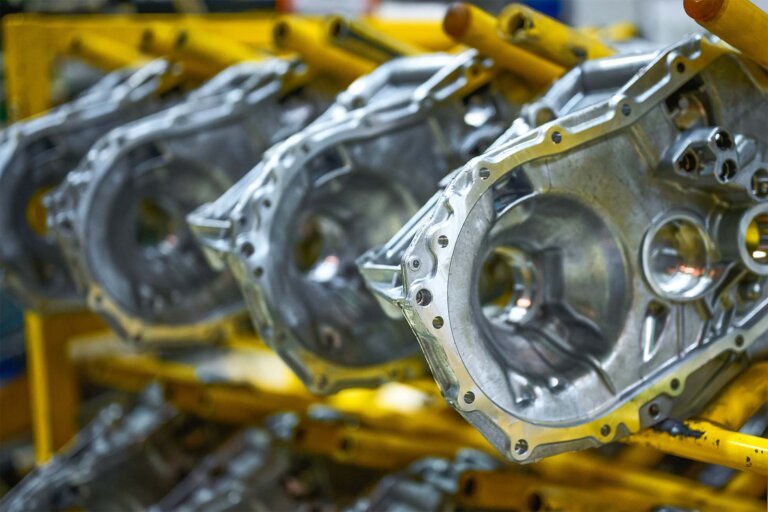

Hot chamber die casting hero
November 22, 2023

The Fundamentals of Hot Chamber Die Casting

Hot chamber die casting is a specific die casting manufacturing process known for its efficiency, precision, and widespread applications across various industries. With a rich history spanning over centuries, this method has continually evolved, offering a reliable means of producing intricate metal components used in everything from industrial parts to household appliances.

The History of Hot Chamber Die Casting

The roots of die casting can be traced back to the mid-19th century when innovative minds sought ways to efficiently produce intricate metal parts. Originally, the method involved manually pouring molten metal into molds, but this process was labor-intensive and lacked precision.

The birth of die casting as we know it today began with the invention of the hot chamber die casting machine by Sturges in 1849. This marked a turning point, enabling more streamlined and automated production. This method significantly reduced manual labor and improved the precision of manufactured components.

What is Hot Chamber Die Casting?

Hot chamber die casting is a process used to create metal parts by injecting molten metal into a mold cavity at high temperatures. The term “hot chamber” refers to the machinery involved, where the molten metal remains in a container connected directly to the die casting machine. In comparison to cold chamber die casting, the molten metal is injected into the die cavity at a relatively low pressure.

The Hot Chamber Die Casting Process

  1. Preparation: The process commences with the preparation of the die, usually made from hardened steel, which is then securely mounted onto the die casting machine.
  2. Melting: In the hot chamber, a crucible containing the metal, typically zinc, magnesium, or lead-based alloys with low melting points, is heated to a liquid state.
  3. Injection: Once molten, a piston forces the metal into the die cavity under high pressure. The pressure helps ensure that the liquid metal fully fills the mold, resulting in detailed and accurate parts.
  4. Solidification: After the mold is filled, the molten metal rapidly cools and solidifies within the die cavity, taking the shape of the mold.
  5. Ejection: Finally, the newly formed part is ejected from the mold, and excess material, known as flash, is trimmed off.

Advantages of Hot Chamber Die Casting

This process boasts numerous advantages that make it a preferred choice for manufacturing intricate metal components:

  1. High Precision: Hot chamber die casting produces parts with tight tolerances, high dimensional accuracy, and excellent surface finishes, reducing the need for additional finishing processes.
  2. Rapid Production: Its high-speed production capabilities make it ideal for large quantities of parts within a short timeframe.
  3. Complex Shapes: The process allows for and complex shapes to be produced with ease, maintaining consistency across multiple parts.
  4. Material Versatility: It accommodates a wide range of metals and alloys, providing flexibility in material selection based on specific application requirements.

Applications Across Industries

The versatility and efficiency of hot chamber die casting render it invaluable across various sectors:

  1. Automotive Industry: Engine components, transmission parts, and intricate car body elements are frequently produced through hot chamber die casting due to its ability to create lightweight yet durable parts.
  2. Electronics: The method is used for manufacturing components in electronic devices, such as casings for smartphones, laptops, and other gadgets.
  3. Industrial Machinery: Hot chamber die casting plays a crucial role in creating parts for heavy machinery and equipment, ensuring durability and precision in their construction.

Hot Chamber Machine Components

Hot chamber die casting machine

A Simhope hot chamber die casting machine above.

The hot chamber process involves several key components working together to create precise metal parts:

  1. Die Casting Machine: This is the central apparatus responsible for the entire process. It comprises various components like the injection system, die or mold, and clamping unit. The machine applies pressure to inject molten metal into the die cavity.
  2. Die or Mold: Typically made from hardened steel, the die or mold is where the molten metal is injected to create the desired shape of the final product. It’s designed with precision to form complex parts accurately.
  3. Molten Metal Reservoir: In hot chamber die casting, there’s a dedicated reservoir or melting pot connected directly to the die casting machine. This reservoir holds the molten metal, ensuring a continuous supply for injection into the die cavity.
  4. Injection System: Comprising a piston and associated components, the injection system is responsible for pushing the molten metal from the reservoir into the die cavity. The high pressure ensures the cavity is completely filled with the molten metal.
  5. Cooling System: Once the molten metal fills the die cavity and takes the shape of the mold, a cooling system rapidly cools and solidifies the metal, allowing the finished part to be ejected.
  6. Ejector Pins: These pins assist in the removal of the finished part from the die cavity after solidification. They help release the part while minimizing damage or distortion.
  7. Trimming Tools: After ejection, excess material or flash may remain on the part. Trimming tools are used to remove this excess material and refine the final product.

Each component plays a crucial role in the hot chamber die casting process, ensuring the precise and efficient production of intricate metal parts. The synergy among these elements determines the quality and accuracy of the manufactured components.

Hot Chamber Die Casting Materials

The hot chamber process is best suited for metals and alloys with lower melting points. Some of the commonly used metals in this process include:

  1. Zinc: Known for its low melting point and exceptional fluidity, zinc is a popular choice for hot chamber die casting. It allows for intricate and precise parts to be manufactured efficiently.
  2. Magnesium: With a relatively low melting point and excellent strength-to-weight ratio, magnesium is also frequently used in hot chamber die casting, particularly in applications where lightweight components are crucial.
  3. Lead and Tin Alloys: These alloys, often used in specific applications, benefit from the lower temperatures required for hot chamber die casting.

These metals and alloys are well-suited for the hot chamber die casting process due to their ability to maintain their structural integrity and fluidity at lower temperatures, facilitating the creation of detailed and accurate components.

Future Innovations and Sustainability

Continual advancements in technology have led to innovations in the die casting process. Efforts are underway to improve energy efficiency, reduce waste, and explore more sustainable materials.

  1. Environmental Considerations: There’s a growing emphasis on using recycled materials and developing eco-friendly alloys to minimize the environmental impact of the die casting process.
  2. Additive Manufacturing Integration: The integration of additive manufacturing techniques with die casting is being explored to enhance design flexibility and produce more intricate structures.
  3. Process Optimization: Ongoing research focuses on optimizing the process parameters to reduce energy consumption and material waste while maintaining quality.

What is the difference between the hot chamber die casting process and the cold chamber die casting process?

The primary difference between a hot chamber machine and a cold chamber machine lies in how they handle the molten metal. In hot chamber die casting, the melting pot containing the molten metal remains immersed in the furnace, directly connected to the machine. This built in furnace allows for a continuous cycle of injecting molten metal into the die cavity, making it ideal for metals with lower melting points, like zinc and magnesium.

Conversely, cold chamber die casting involves a separate furnace where the metal is liquified before being ladled into the injection chamber. Cold chamber die casting is preferred for materials with higher melting points, such as aluminum and copper-based alloys, as it prevents the direct exposure of the injection mechanism to molten metal, which could potentially erode it over time.

Both of these die casting machines have their unique advantages and disadvantages.

Casting a Conclusion

Hot chamber die casting stands as a cornerstone of modern manufacturing, enabling the efficient production of complex metal components across a spectrum of industries. Its precision, speed, and adaptability continue to drive innovation, shaping the future of manufacturing processes. As technology evolves, so too will this method, promising greater efficiency, sustainability, and versatility in the production of intricate metal parts that power our world.
