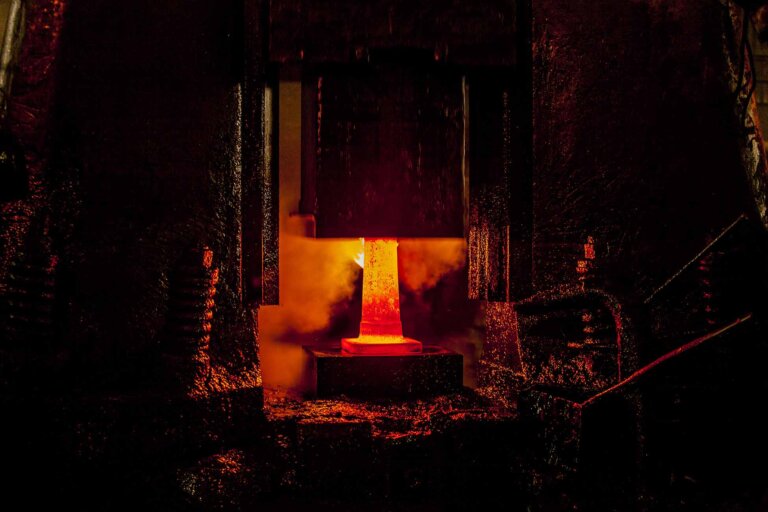

Drop Forging Manufacturing TFG USA 1
January 18, 2024

Exploring the World of Drop Forging

In the realm of metalworking, where strength, durability, and precision matter, drop forging stands out as a time-tested and reliable manufacturing process. This metal forging technique has been a cornerstone in the production of high-quality metal components, contributing to the creation of robust products across various industries.

In this blog post, we’ll delve into the fascinating world of drop forging, exploring its principles, advantages, and applications.

What Is Drop Forging?

Drop forging, also known as hot forging, hammer forging, and impression die forging is a metalworking process that involves the shaping of metal by the application of compressive forces. The technique typically utilizes a set of dies and a hammer or press to deform and shape the metal into the desired form. Drop forging can utilize an an open die or a closed die forging press.

Unlike other forging processes like cold forging or cold working, hammer forging is performed at elevated temperatures, allowing for greater malleability and the creation of intricate designs into a desired shape.

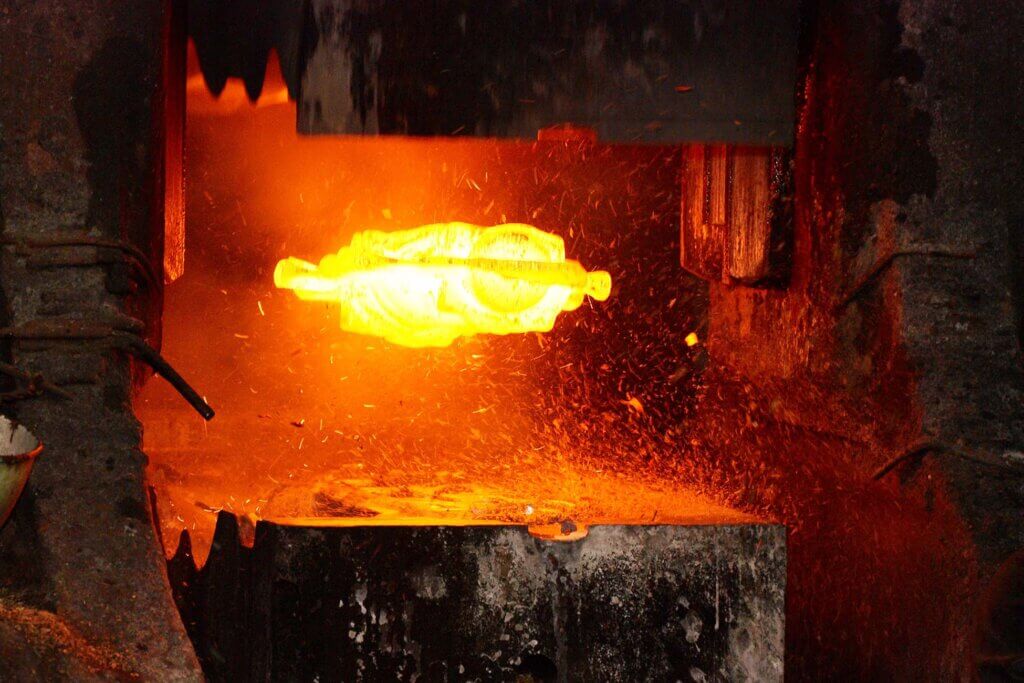

The Drop Forging Process

Drop Forging Manufacturing TFG USA 2

Key steps in drop forging:

  1. Material Selection: Drop forging can be applied to various metals, including steel, aluminum, and titanium. The choice of material depends on the specific requirements of the end product.
  2. Heating: The selected metal is heated to a temperature that makes it more pliable. This crucial step ensures that the material can be easily shaped without fracturing.
  3. Die Preparation: Dies, which are molds or forms, are carefully crafted to match the final design of the component. These dies play a pivotal role in determining the accuracy and quality of the forged part.
  4. Forging Process: The heated metal is placed between the dies, and a drop hammer or press is used to apply continuous pressure. The metal takes the shape of the dies, resulting in a forged component with enhanced strength and structural integrity.

Advantages of Drop Forging

  • Strength and Durability: In comparison to CNC machining or casting, drop forging produces forged parts with greater strength and durability due to the grain structure or grain flow refinement that occurs during the process. The result is a product with continuous grain flow.
  • Precision and Consistency: The use of dies ensures a precise shape, leading to forged parts with tight tolerances and consistent quality.
  • Cost-Effective for Mass Production: Although the initial investment of the die may be expensive, drop forging becomes a cost-effective method for mass production, making it ideal for industries with high volume requirements.

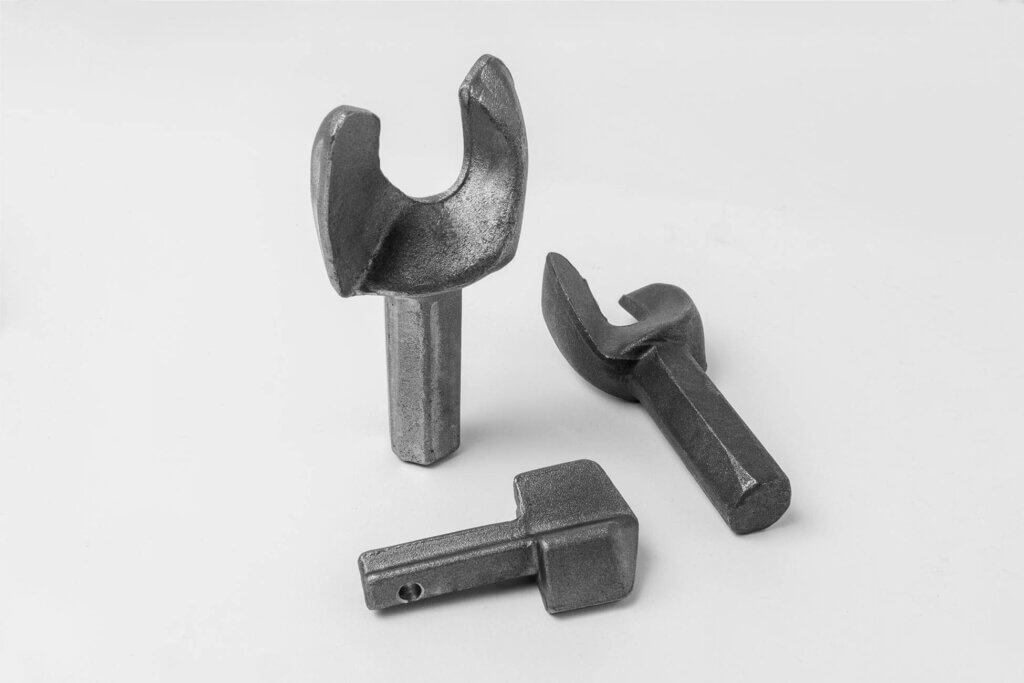

Applications of Drop Forging

Drop Forging Manufacturing TFG USA

  • Agriculture Industry: Many critical components, such as crankshafts, connecting rods, and gears, are often manufactured using hammer forging for their strength and reliability.
  • Mining and Drilling: Drop forging is widely employed to produce components like drill bits and mining components that require high strength and precision.
  • Industrial Equipment: Various industrial equipment, including valves, couplings, and tool components, benefit from the strength and durability provided by drop forging.

Drop Forging Material

Drop forging, also known as hot forging, is a versatile manufacturing process that can be applied to a variety of raw materials. The choice of material depends on the specific requirements of the end product and the characteristics desired in the final forged component.

Here are some common materials used in the drop forging manufacturing process:

  • Steel: Steel is one of the most commonly used materials in drop forging due to its excellent strength, durability, and versatility. Different types of steel, such as carbon steel, alloy steel, and stainless steel, may be used based on the application and required properties.
  • Aluminum: Aluminum is often chosen for its lightweight properties. Drop forging aluminum components is advantageous in industries where weight reduction is a critical factor, such as aerospace and automotive.
  • Brass: Brass, an alloy of copper and zinc, is used in drop forging for applications where corrosion resistance and a distinctive appearance are important. It finds use in decorative and functional components.
  • Copper: Copper and its alloys are utilized in drop forging for electrical components and applications where high thermal conductivity is required. Copper alloys, such as bronze and brass, are commonly used.
  • Titanium: In industries requiring high strength-to-weight ratios, like aerospace, titanium is a preferred material. Drop forging titanium components provides strength, corrosion resistance, and excellent heat resistance.
  • Nickel-Based Alloys: Alloys such as Inconel and Monel, which contain nickel, are used in drop forging for applications requiring resistance to high temperatures, corrosion, and wear. These alloys are often employed in aerospace and chemical processing.
  • Tool Steels: For manufacturing dies used in the drop forging process, tool steels are essential. These steels are chosen for their high hardness, wear resistance, and toughness.

It’s important to note that the specific material selected depends on the mechanical properties required for the end product, as well as factors like cost, availability, and the intended application. The versatility of hammer forging allows manufacturers to choose materials that best suit the performance and durability needs of the components they are producing.

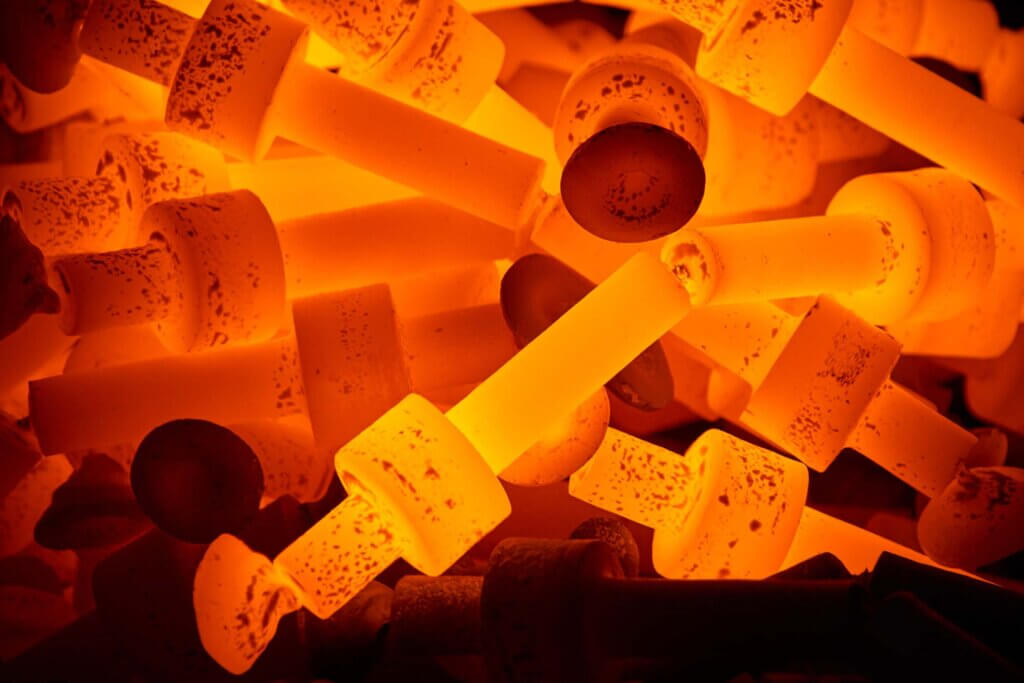

Drop Hammers

Drop Forging Manufacturing TFG USA 3

Drop forging involves the use of different types of drop hammers to apply repeated blows on the workpiece, shaping it into the desired form. The choice of hammer depends on factors such as the size and type of the workpiece, the material being forged, and the specific requirements of the forging process. The common types of hammers used in drop forging are power hammers, steam hammers, air hammers, gravity hammers, hydraulic hammers, and board hammers.

What Is the Difference Between Drop Forging and Press Forging?

Drop forging and press forging are both metalworking processes used to shape and form metal components, but they differ in the way force is applied during the forging operation. Here are the key differences between drop forging and press forging:

  • Drop Forging: In the drop forging process, the force is applied by a hammer die or a power-driven ram that is dropped onto the workpiece. The impact of the hammer’s blow deforms the metal into the shape of the dies. The force in drop forging is typically delivered in a single, quick stroke.
  • Press Forging: In the press forging process, the force is applied gradually by a hydraulic forging press or mechanical press. The press exerts a sustained and controlled pressure on the workpiece, allowing for more precision in shaping and forming.

Forging A Conclusion

As a time-honored technique in the world of metalworking, hammer forging continues to play a crucial role in producing components that meet the highest standards of strength, precision, and durability. Its applications across diverse industries underscore its versatility and effectiveness in meeting the demands of modern manufacturing.

In an era of technological advancements, drop forging stands as a testament to the enduring value of craftsmanship and precision in shaping the materials that drive our world forward.

Drop Us a Line

Choosing the right forge for a drop forging project is crucial for ensuring the success, quality, and dimensional accuracy of your product or assembly. The Federal Group USA has been delivering forging services for over 40 years.

Whether your component has complex shapes or requires high volumes, The Federal Group can help with material savings on your next drop forging project. Contact us today for a free proposal.

Up Next

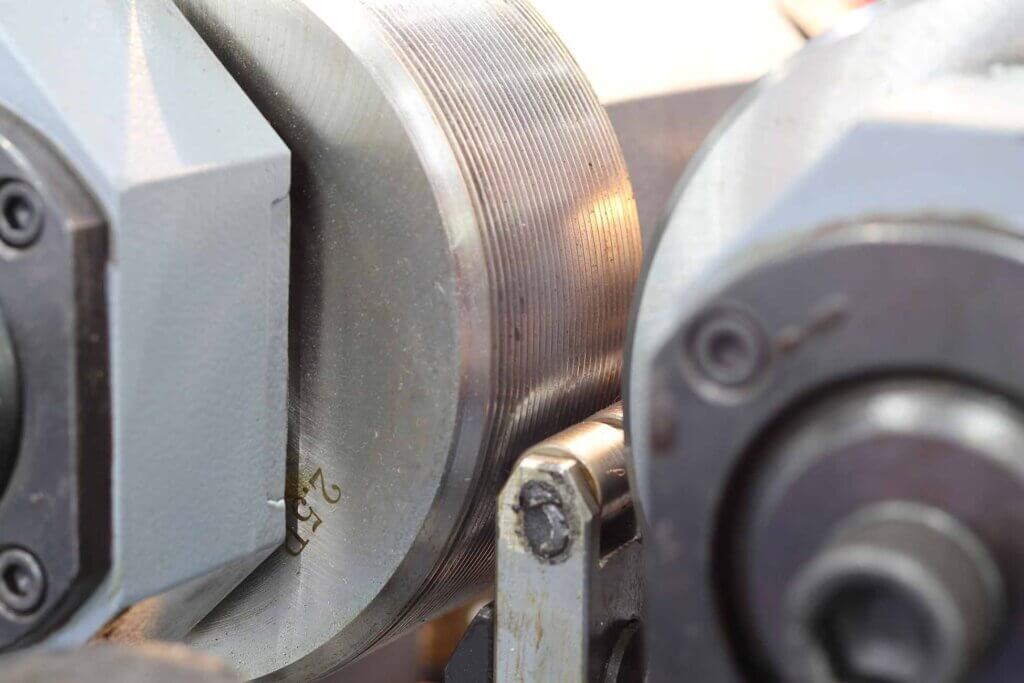

Unraveling The Advantage of Thread Rolling
